Product Category » Vertical Din Rail Enclosures

Features

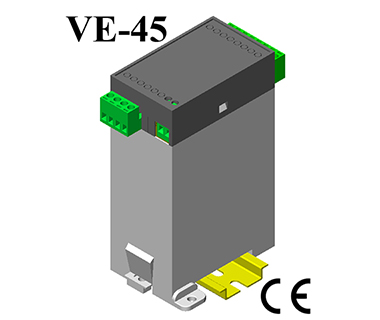

  • Enclosures Size Out Side: 75 x 45 x 123 mm
  • DIN rail EN 60 715 TH35 as well as wall mounting.
  • Snap-together design speeds up assembly.
  • PCBs design four types: Base PCB, Display PCB, and auxiliary Vertical & Horizontal PCBs.
  • PCB guides: Integral molded guides in all directions.
  • Max. 16 Terminal (8+8) – standard 5mm pitch fixed OR Plug-In type.
  • Knockout blanks for individual terminal configuration
  • Terminals can be mounted on Base PCB as well as vertical PCBs
  • Terminals are optional – Enclosure supplied with / without terminals. Customer can use any make 5mm pith terminals.
  • Protection - IP20 (finger protected) Protection against accidental contact
  • Customization : Cutout / holes in Top cover front plate possible

Application

 It is a versatile, compact enclosure is ideal for housing Electrical, Electronics & Electromechanical small devises like I/O circuits, relays, timers, transducers, transmitters, Sensing and Motoring Devices.

Standard Modals
Accessories ( Loose Parts )
ET-0.5-2P
ET-0.5-2P
ET-0.5-3P
ET-0.5-3P
ETPL-0.5-4P
ETPL-0.5-4P
ETPL-0.5-6P
ETPL-0.5-6P
ETPL-0.5-8P
ETPL-0.5-8P
